The Boeing CST-100 – Image: Boeing
I recently had the opportunity to head to Las Vegas (insert Viva Las Vegas song here) to learn about some pretty interesting advancements in commercial space travel; specifically, with the Crew Space Transportation (CST-100) from Boeing. The company sees an increased demand from governments, corporations, and private citizens to get to space, and they are placing their bet that the CST-100 can provide a solution.
The CST-100 is being designed as part of NASA’s Commercial Crew Integrated Capability initiative, which is trying to find a private solution to transport crew and supplies into space. The winner could be considered the replacement for the Space Shuttle.
Boeing is one of three companies (the other two are Space Exploration Technologies, aka SpaceX, and Sierra Nevada Corporation) competing for NASA’s business. When the decision is made, NASA could choose just one winning design, or could choose to go with two. Obviously, Boeing is hoping to be in the winner’s circle.
The goal with the CST-100 is to not to only be functional, but to also provide an impressive interior, and Boeing has some interesting ideas.
Infographic Source: SPACE.com: All about our solar system, outer space and exploration
The CST-100 is designed to carry up to seven passengers, or passengers and cargo, to low-Earth-orbit destinations, like the International Space Station or a Bigelow BA 330 station, which is planned for the future. (I will go into much more detail on the BA 330 in a future story).
The weld-less design of the CST-100 allows it to be re-used up to 10 times – at least this is the goal for now. That number could increase dramatically once actual test trials start and the design is proven.
Once ready, the CST-100 will be launched using a United Launch Alliance (ULA)-provided Atlas V rocket, and once the mission is done, the capsule will return to Earth gently using parachutes. Although the CST-100 is designed to float on water, when returning to Earth, it will land on the ground. Currently, Boeing is scouting out potential landing areas, which are large, flat, and accessible to get out the crew within two hours of landing.

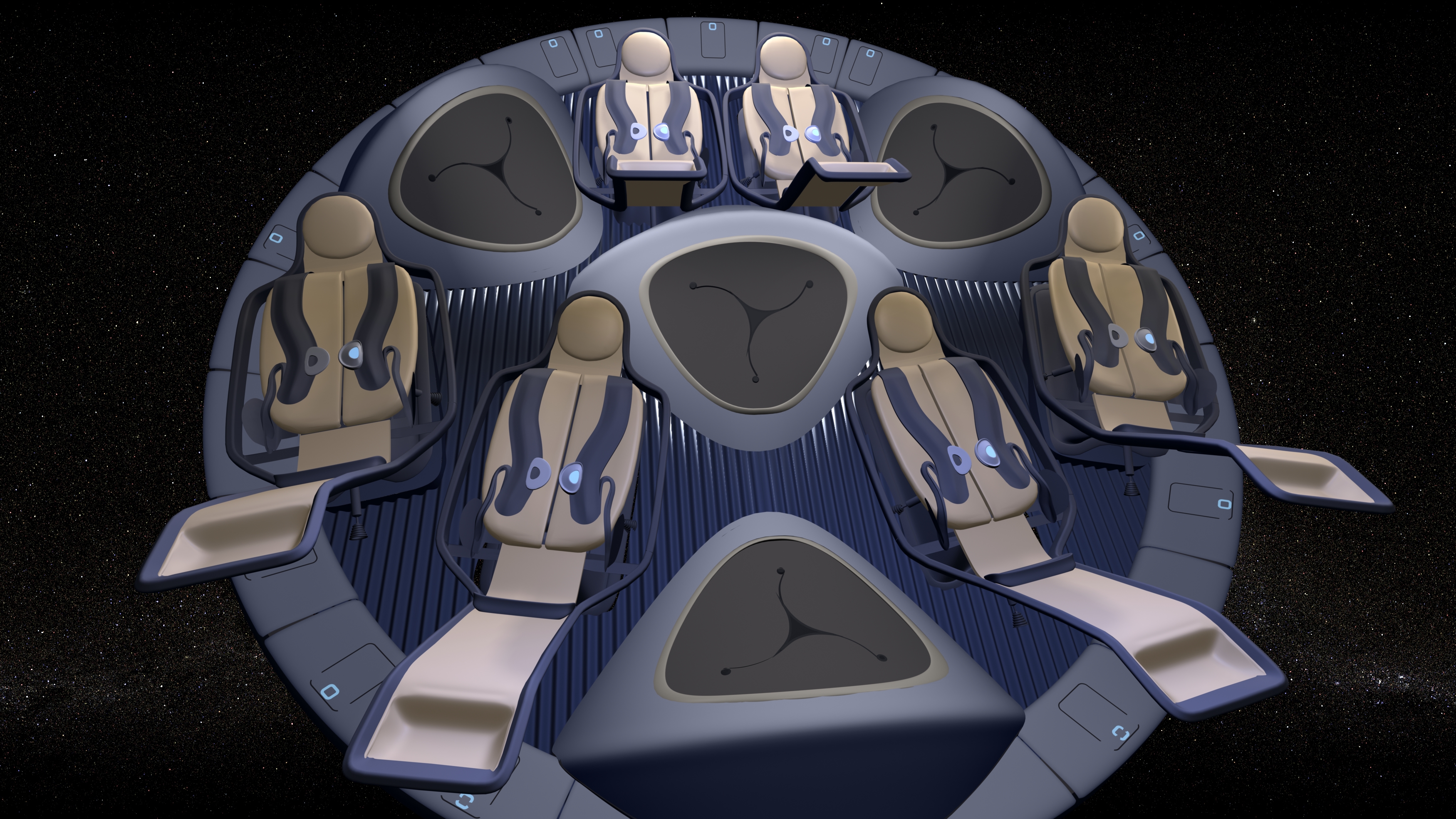

Passengers and cargo can be interchanged and flown on the CST-100 – Image: Boeing
One of the most impressive parts of the CST-100 is what Boeing is planning to do with the interior. Although the spacecraft is initially being designed for use with NASA, it could very easily be used in other future commercial projects.
’œWe are moving into a truly commercial space market and we have to consider our potential customers ’“ beyond NASA ’“ and what they need in a future commercial spacecraft interior,’ said Chris Ferguson, former Space Shuttle Atlantis commander and current Boeing Director of Crew and Mission Operations for the Commercial Crew Program.
Since it can take up to 30 hours from lift-off until docking, Boeing wanted to make the interior space appealing to the eyes and body. Most other space projects have a sterile, government-issue look to them. Boeing wanted to have an option for a world-class interior that also stuck to revenue generating principals.
Luckily for Boeing, they have a dedicated team of folks working at interiors at their Commercial Aircraft division. Why re-invent the wheel when Boeing could pull from resources that they already have to help create their new interiors?

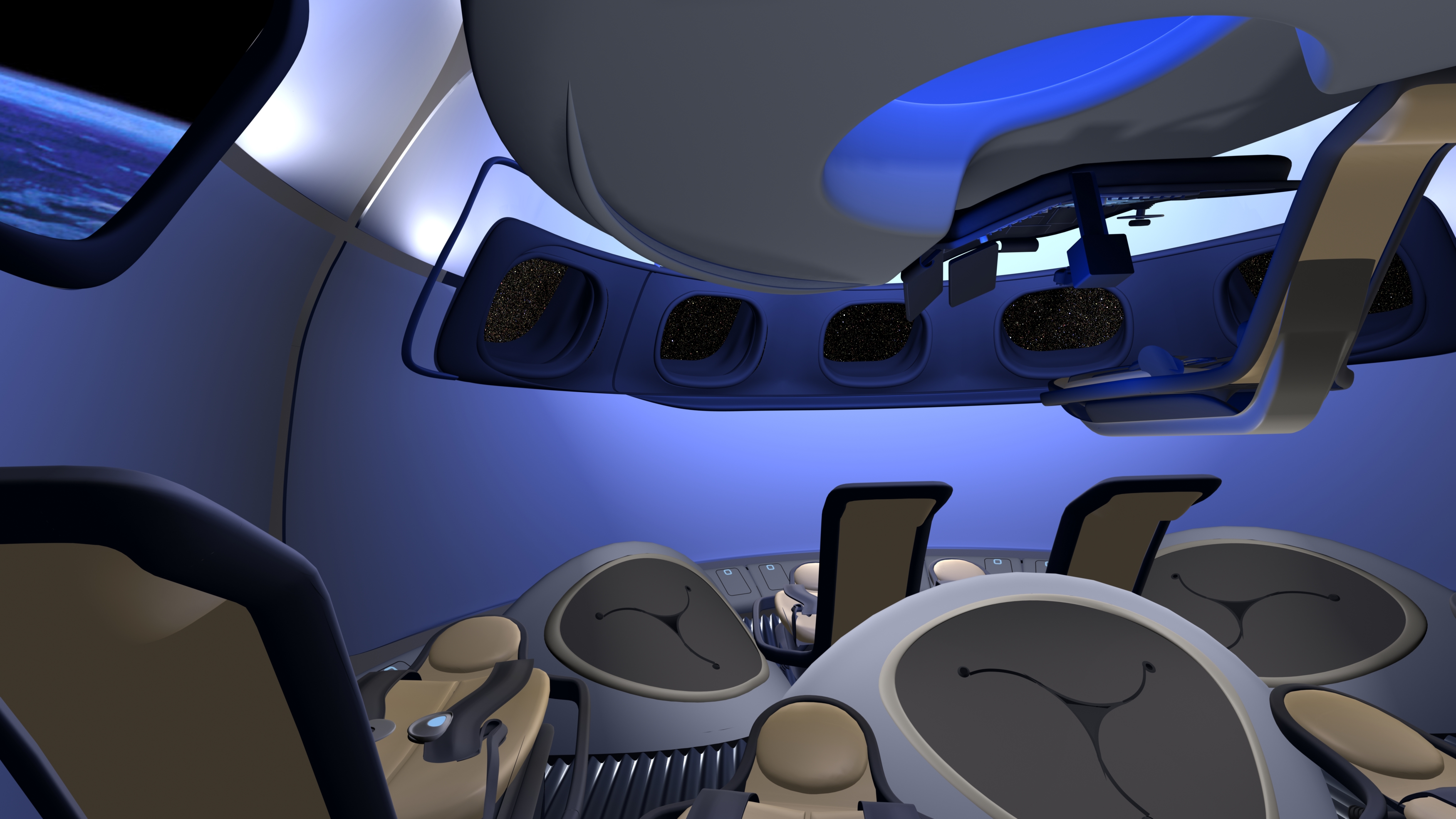

The lighting will look like the Boeing Sky Interior seen on many of the new Boeing airliners – Image: Boeing
Boeing formed teams from Commercial Aircraft to help think and design what could be possible. They wanted to make the design more commercial and give it the, “Boeing touch.” Boeing has done a great job with their interiors on the 787 and the new 737s, and they took that research to put it into the CST-100.
That’s right, there will be an option to have a “Boeing LED Sky Lighting,” a set up that mimics that Boeing Sky Interior in space. How cool is that?

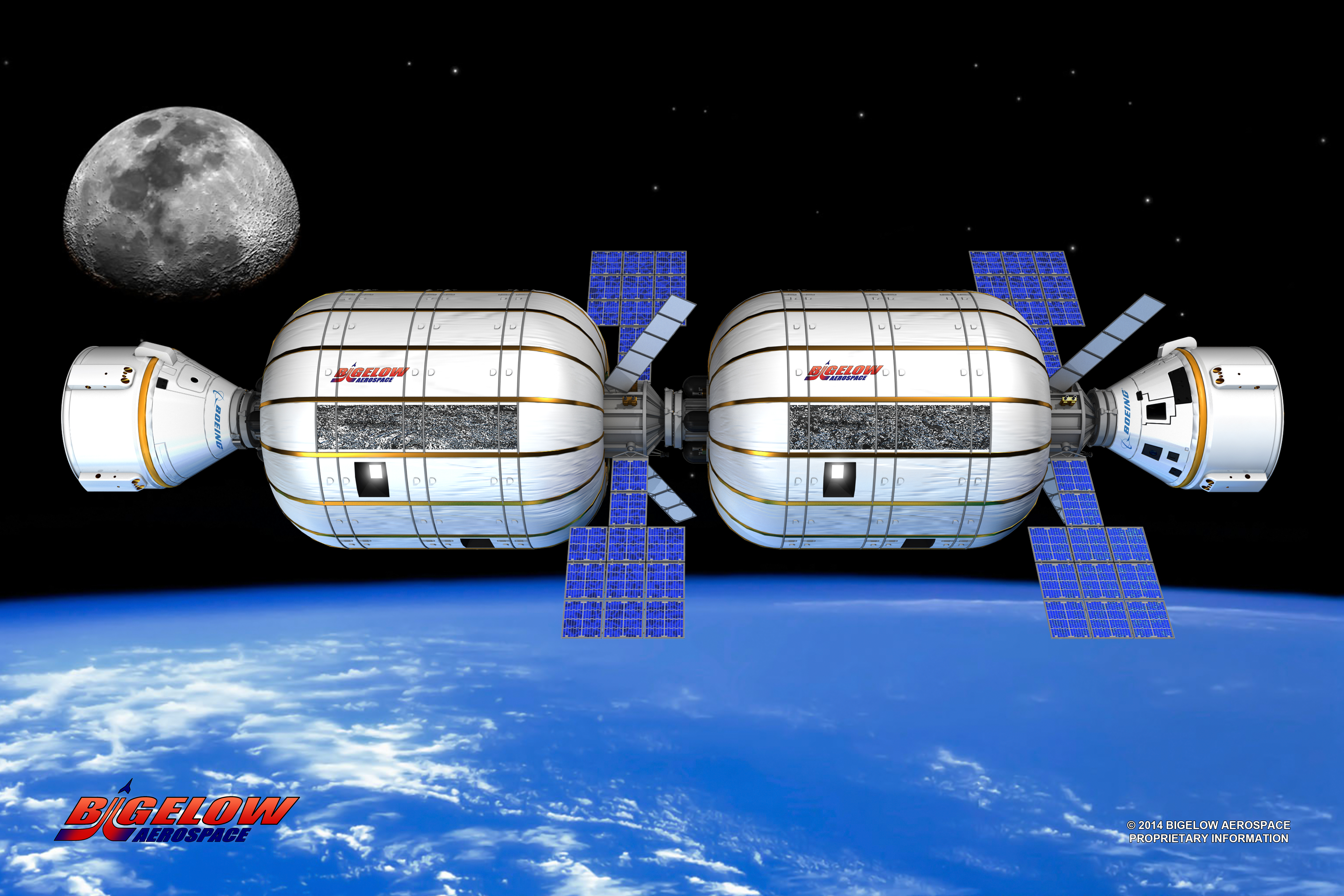

The CST-100 docked up to the Bigelow BA-330 – Image: Boeing
This is one of the debates going on within Boeing right now – should the CST-100 have windows or not? As part of the contract with NASA, there needs to be one window for the pilot to successfully dock to their target. But the question is more related to passengers and connecting them to the space flight experience.
Of course in a perfect world, there would be no question of using windows. But as with almost anything good, there are drawbacks; windows increase weight, complexity, and costs. The windows in the Space Shuttle are five-inches long, and that alone adds weight, not to mention the additional structure to support the windows.
One solution Boeing is considering is using a large LED screen to connect passengers to the exterior experience, providing views and details about their flight. Think of it like the view screen on Star Trek, but real.
Even though windows might add complexity and costs, you can’t beat seeing space and earth with your own eyes through the windows. I would imagine if an individual is paying millions of dollars to get access to space, they want to see the experience natively, versus via a view screen. I hope that Boeing is able to come up with some sort of compromise.

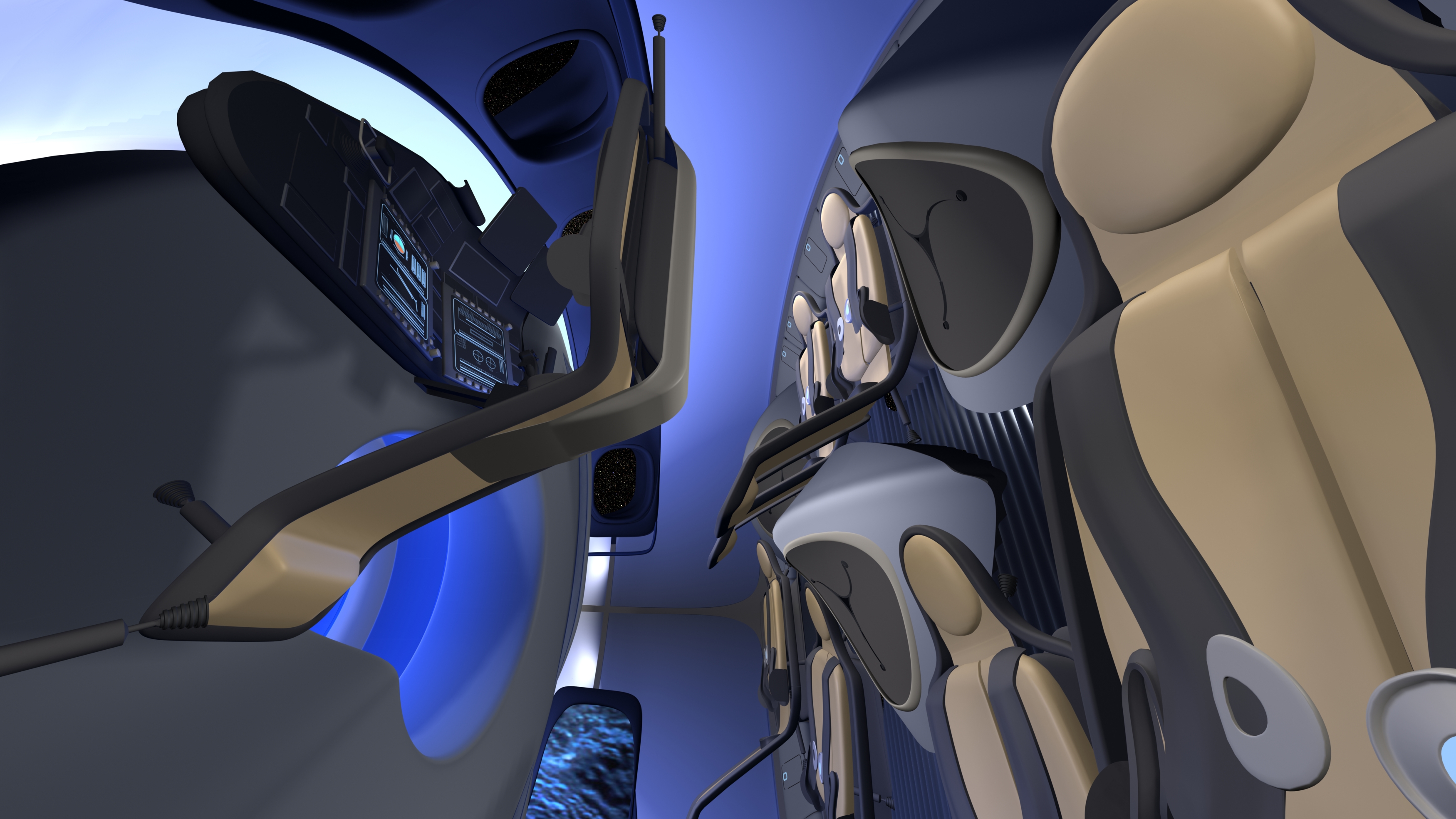

The pilot will be seated above the rest of the passengers and cargo – Image: Boeing
There would be quite a bit of free time in the CST-100, since it handles most everything on its own. The space vehicle has a pilot, but is both automated (no pilot input, but talking to the ground) and autonomous (no pilot or ground input) and able to lift off and guide itself to its destination.
But just like how most aspects of commercial airline operations can be automated, there are pilots on board to manage the autonomy and take over if things go wrong.

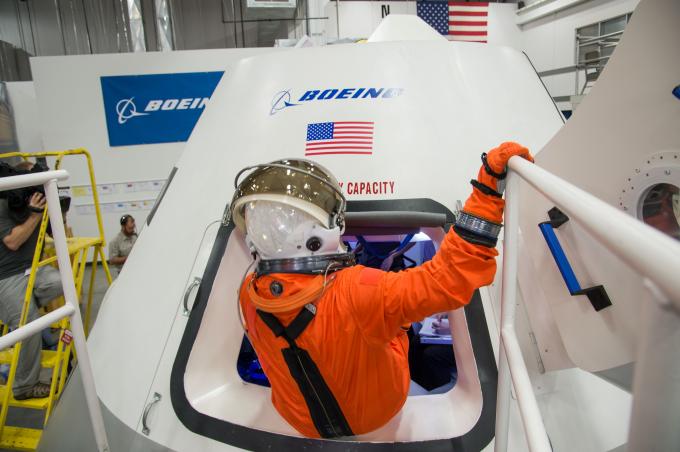

Astronaut Randy Bresnik testing the current CST-100 mock-up – Photo: Boeing
Some additional interesting features of the CST-100:
- Innovative weld-less design that eliminates the structural risks of traditional welds, and reduces mass and production time
- Pusher abort system that provides safe crew escape throughout the launch phase of the mission; uses flight-proven engines
- Safe system for landing on land, even with a parachute and airbag out; seat struts to further soften the landing
- Flight-proven avionics and software, with significant software code re-use and a rendezvous and docking system flight-proven on Orbital Express
- Emergency systems that enable safe return, even with degraded computer and guidance systems; extensive post-landing crew protection systems; back-up manual control for pilots, just like commercial aircraft
- Ground systems that benefit from NASA capabilities, with Johnson Space Center (JSC) Mission Operations Directorate support to initial flight operations and Kennedy Space Center OPF-3 facility as location for streamlined manufacturing
- Wireless internet to assist with crew communication, entertainment, and docking with the ISS
- Tablet technology, which eliminates the need for bulky crew manuals

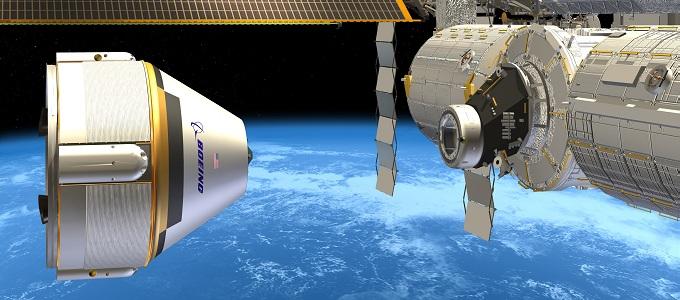

This image shows the CST-100 getting close to dock to the ISS – Image: Boeing
Boeing is expecting to start flight tests by January 2017, if NASA selects their design. If NASA does not select Boeing’s proposal, it is not known if Boeing will continue with the CST-100 for other customers or abandon the project altogether.
Why follow space travel? Well, I assume, like me, that many of you who have a fascination with commercial travel on the ground will also enjoy the thought of commercial travel in space. Steps forward, like the CST-100, are taking us all closer to a time when space travel can be accessible to more people. Remember, air travel used to be just for the privileged and wealthy and now almost everyone can get access.
Maybe someday we can get to the point where people are complaining because their commercial space lines flight to the moon or Mars is 15 minutes late. Until then, we shall follow companies like Boeing, Virgin Galactic, Space X and others to see what they come up with.
